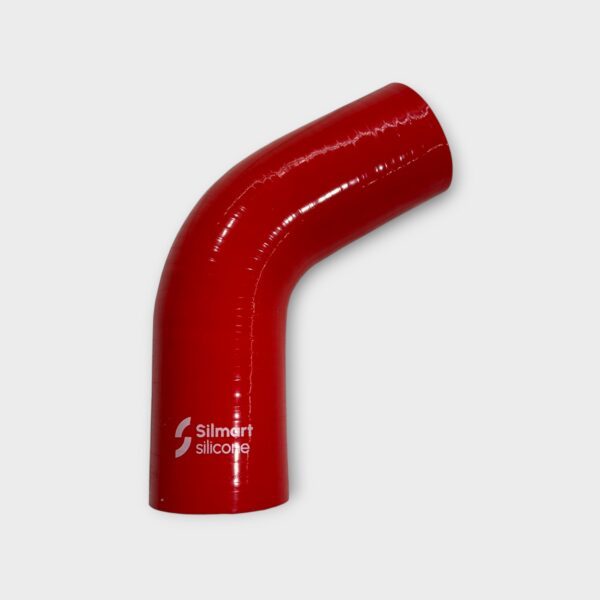

60° Elbow Hoses
60° Elbow Hoses
45° Elbow Hoses - Image 1
Click to enlarge

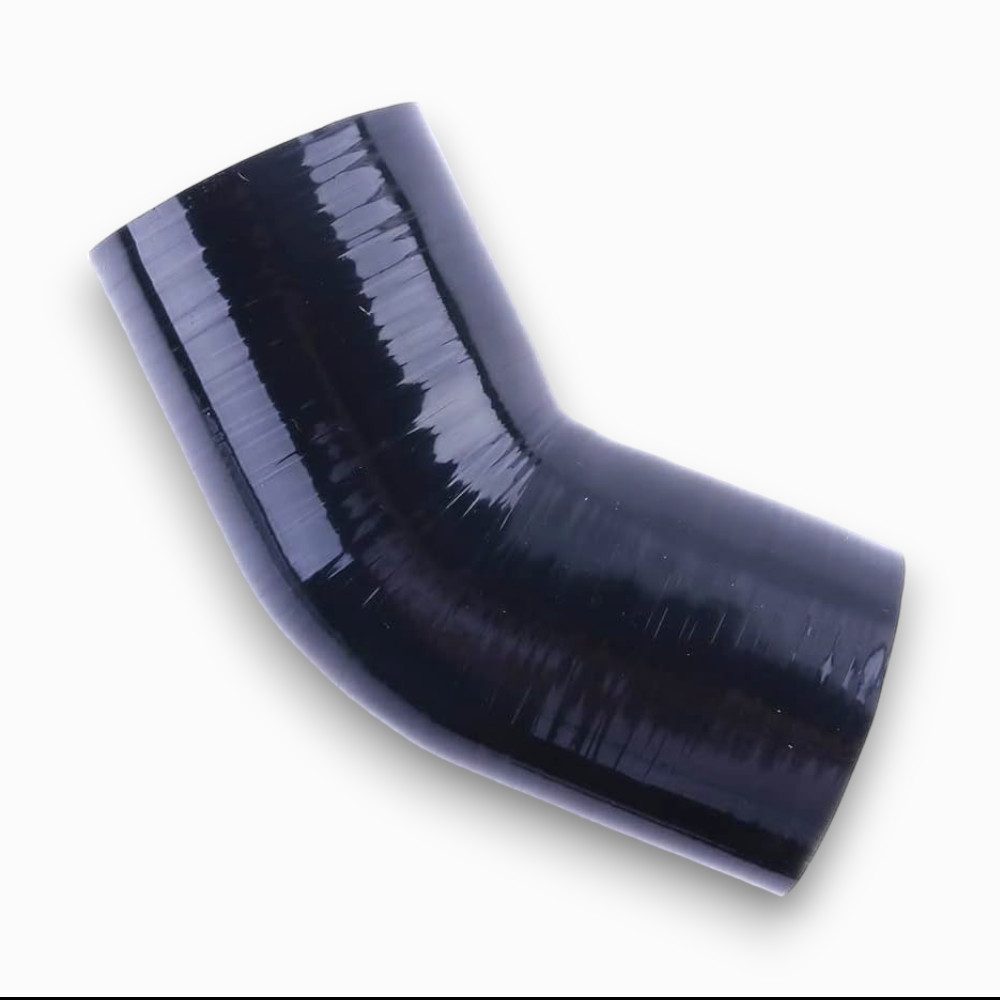

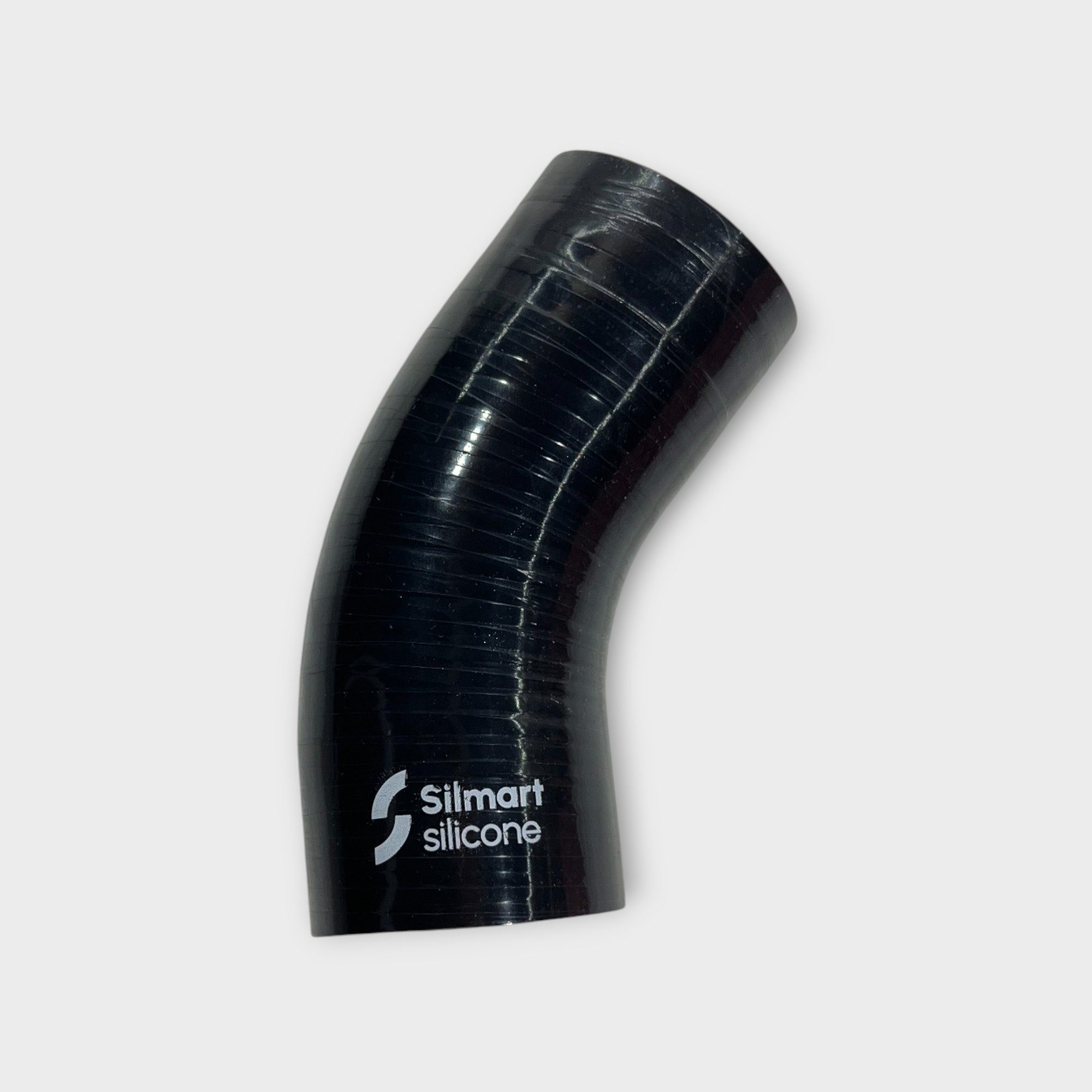

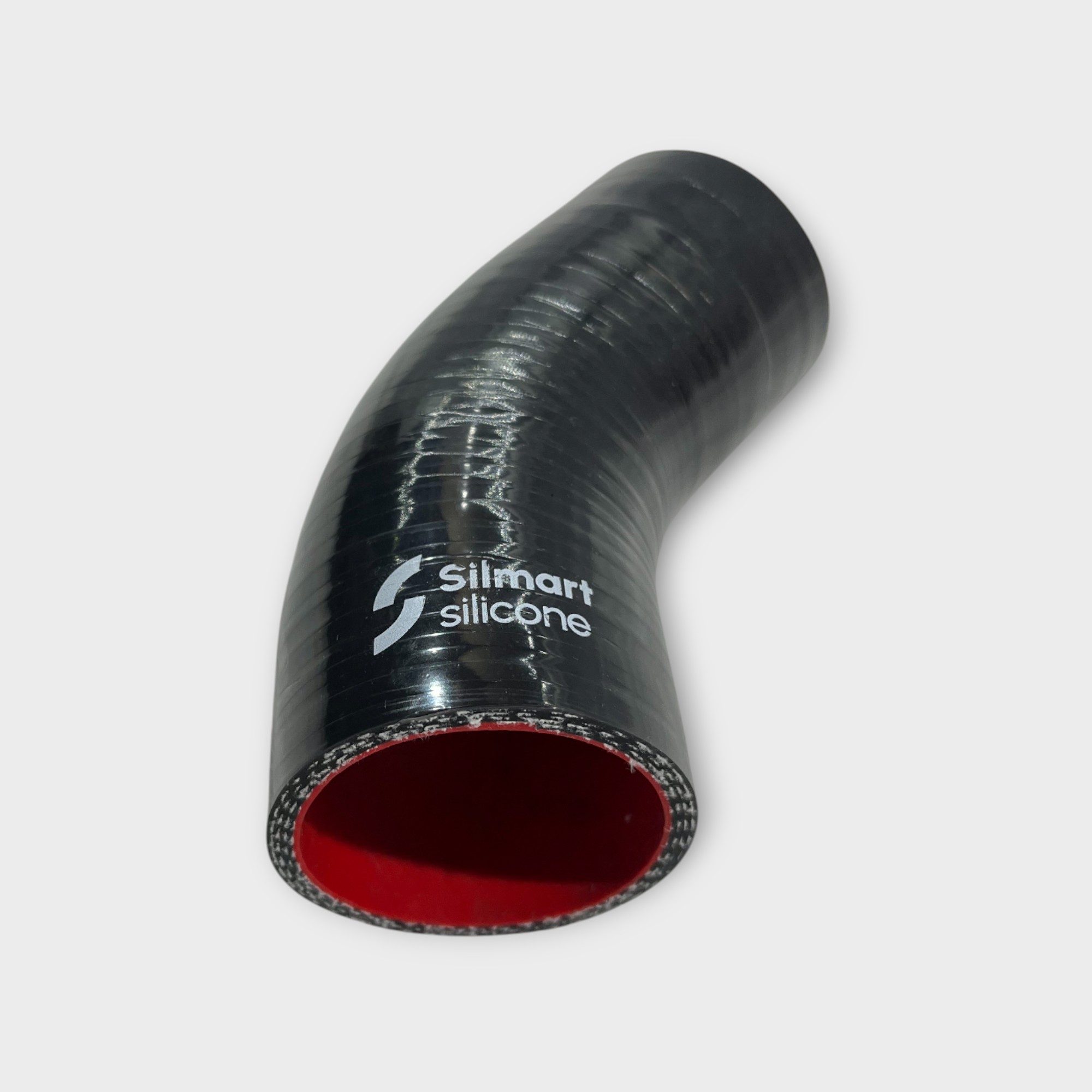

    45° Elbow Hoses

    Our Universal Silicone Hoses are designed to cover a wide range of general-purpose applications across industries – automotive, agricultural, industrial applications, etc.

    • Ideal for cooling systems, air intake, fluid transfer, and custom builds

    • Reinforced with 4 layers of premium polyester

    • High performance – continuous operation under high temperature and pressure

    • UV- and ozone-resistant outer layer for long service life in harsh environments

    • Available colors: red, blue, black, grey, orange

    • 5-Year Warranty

    • See “Available Sizes” tab below for a full list of diameters and lengths in stock

    • When ordering, please reference the Hose ID from the table below to ensure correct product selection

    24/7 Support

    Unlimited help desk

    Inside Diameter - ID Leg Length
    L1 (inch)  x L2 (inch)     		 Part Number / Hose ID
    5/8" (16mm)
    • 4" x 4"
    • 8" x 8"
    • SMK 045.016.016.102
    • SMK 045.016.016.200
    3/4" (19mm)
    • 4" x 4"
    • 8" x 8
    • SMK 045.019.019.102
    • SMK 045.019.019.200
    7/8" (22mm)
    • 4" x 4"
    • 8" x 8"
    • SMK 045.022.022.102
    • SMK 045.022.022.200
    1" (25mm)
    • 4" x 4"
    • 8" x 8"
    • SMK 045.025.025.102
    • SMK 045.025.025.200
    1-1/8" (28mm)
    • 4" x 4"
    • 8" x 8"
    • SMK 045.028.028.102
    • SMK 045.028.028.200
    1-1/4" (32mm)
    • 4" x 4"
    • 8" x 8"
    • SMK 045.032.032.102
    • SMK 045.032.032.200
    1-3/8" (35mm)
    • 4" x 4"
    • 8" x 8"
    • SMK 045.035.035.102
    • SMK 045.035.035.200
    1-1/2" (38mm)
    • 4" x 4"
    • 8" x 8"
    • SMK 045.038.038.102
    • SMK 045.038.038.200
    1-5/8" (41mm)
    • 4" x 4"
    • 8" x 8
    • SMK 045.041.041.102
    • SMK 045.041.041.200
    1-3/4" (45mm)
    • 4" x 4"
    • 8" x 8"
    • SMK 045.045.045.102
    • SMK 045.045.045.200
    1-7/8" (48mm)
    • 4" x 4"
    • 8" x 8"
    • SMK 045.048.048.102
    • SMK 045.048.048.200
    2" (51mm)
    • 4" x 4"
    • 8" x 8"
    • SMK 045.051.051.102
    • SMK 045.051.051.200
    2-1/8" (55mm)
    • 4" x 4"
    • 8" x 8"
    • SMK 045.055.055.102
    • SMK 045.055.055.200
    2-3/8" (60mm)
    • 4" x 4"
    • 8" x 8"
    • SMK 045.060.060.102
    • SMK 045.060.060.200
    2-1/2" (63mm)
    • 4" x 4"
    • 8" x 8"
    • SMK 045.063.063.102
    • SMK 045.063.063.200
    2-3/4" (70mm)
    • 4" x 4"
    • 8" x 8"
    • SMK 045.070.070.102
    • SMK 045.070.070.200
    3" (76mm)
    • 4" x 4"
    • 8" x 8"
    • SMK 045.076.076.102
    • SMK 045.076.076.200
    3-1/8" (80mm)
    • 4" x 4"
    • 8" x 8"
    • SMK 045.080.080.102
    • SMK 045.080.080.200
    3-1/2" (89mm)
    • 4" x 4"
    • 8" x 8"
    • SMK 045.089.089.102
    • SMK 045.089.089.200
    4" (102mm)
    • 4" x 4"
    • 8" x 8"
    • SMK 045.102.102.102
    • SMK 045.102.102.200

    - Material: High-grade silicone
    - Reinforcement: 3 to 5-ply polyester or aramid depending on diameter and type
    - Temperature Range: -60°F to +430°F (constant), up to 480°C (intermittent)
    - Wall Thickness: Typically 4.5mm ±0.5mm (varies by size)
    - Working Pressure: Up to 4 bar (58 psi) depending on diameter
    - Burst Pressure: Minimum 3x working pressure
    - UV, ozone, and oil mist resistant
    - Not recommended for fuel or oil direct contact
