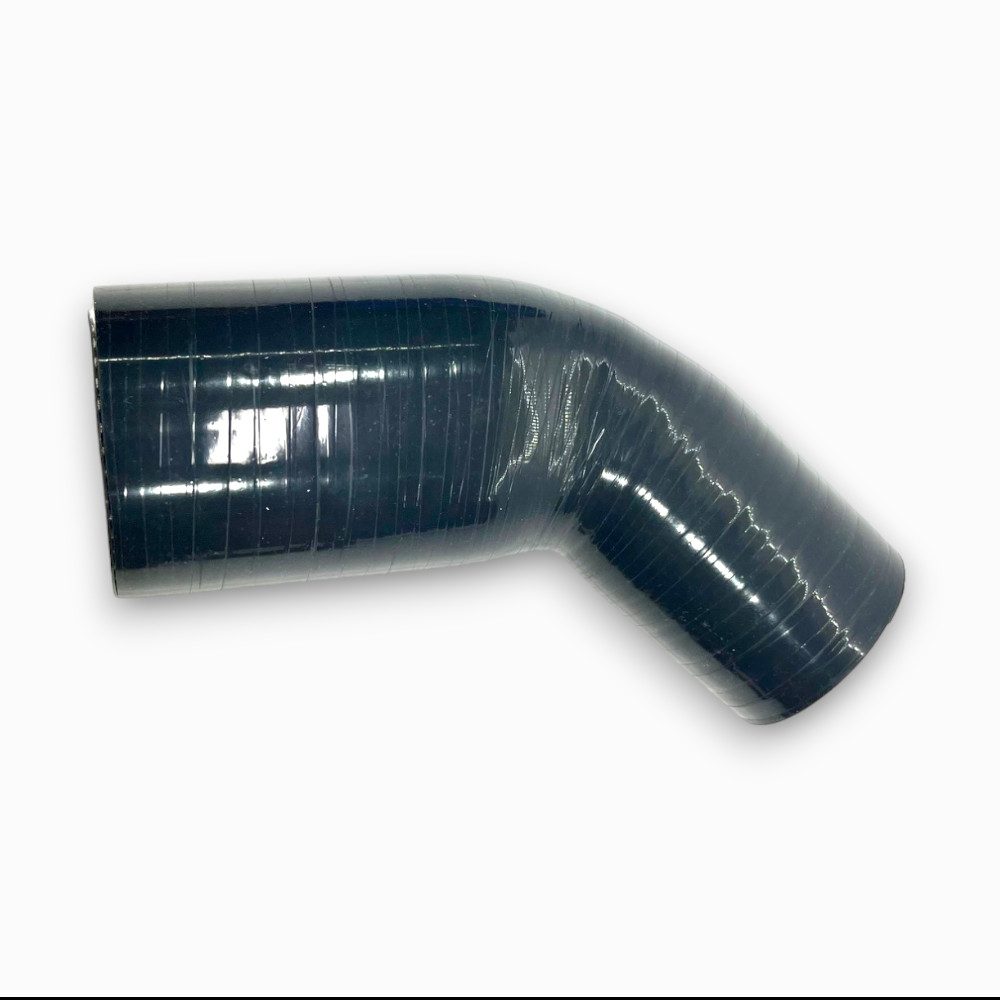

45° Reducer Elbows - Image 1
Click to enlarge

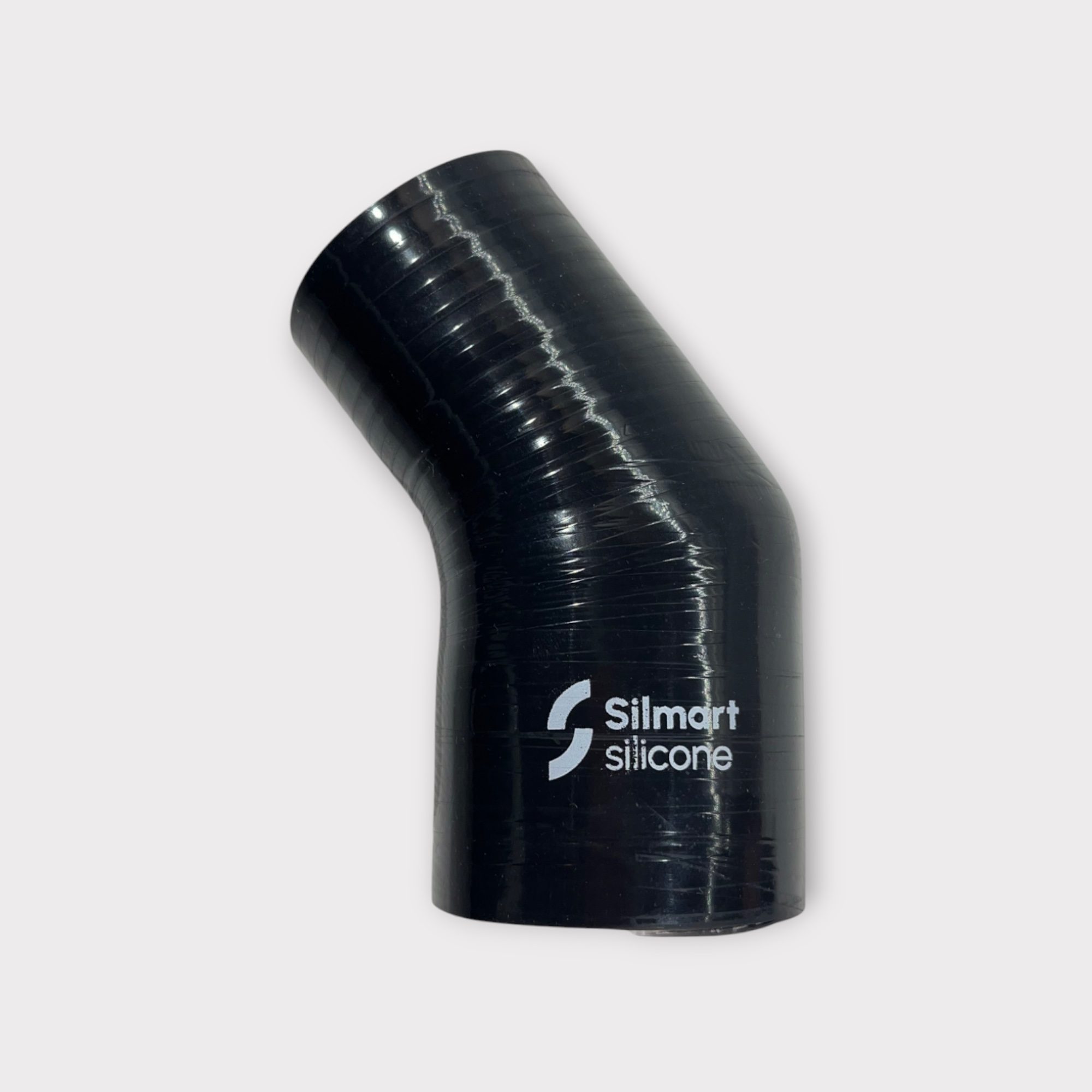

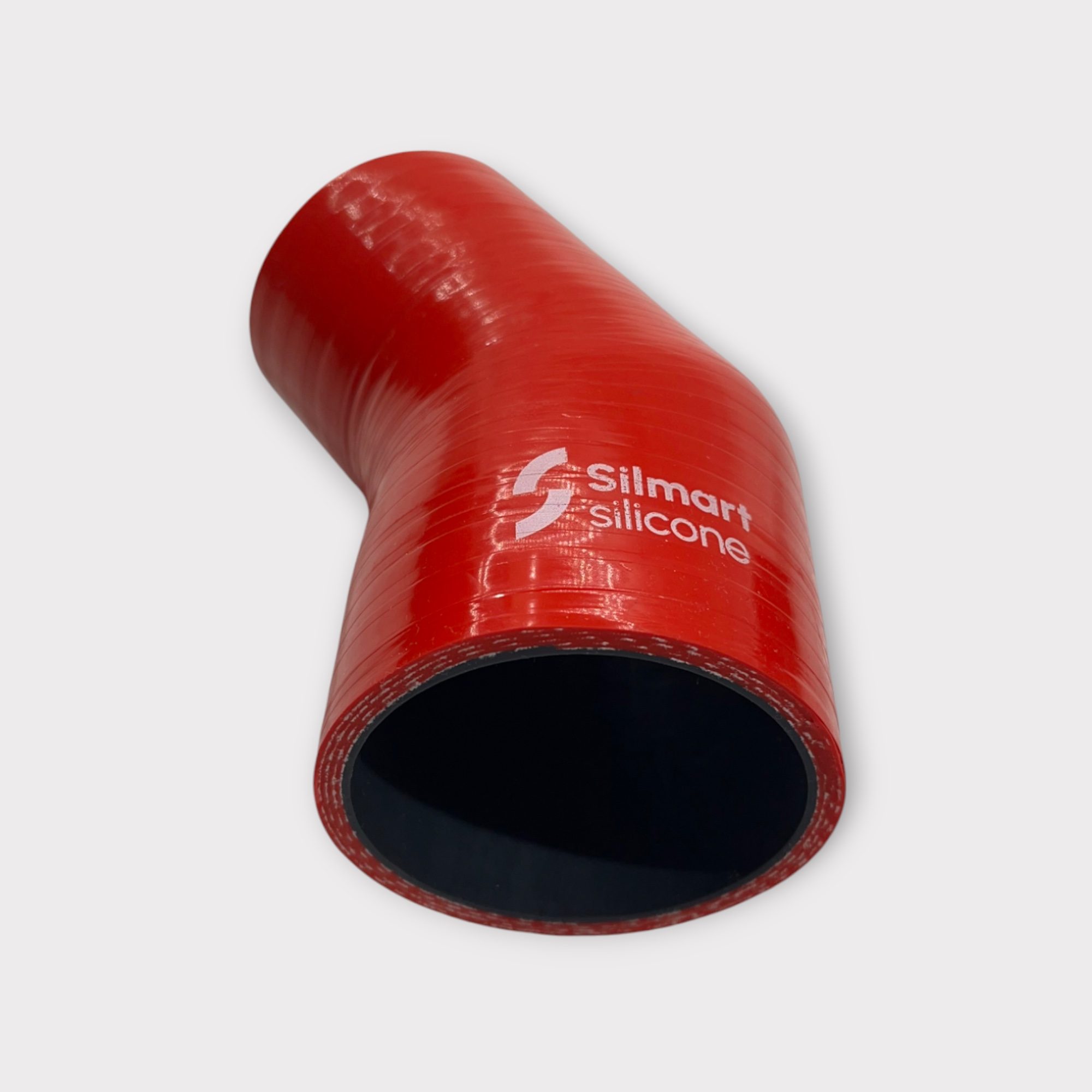

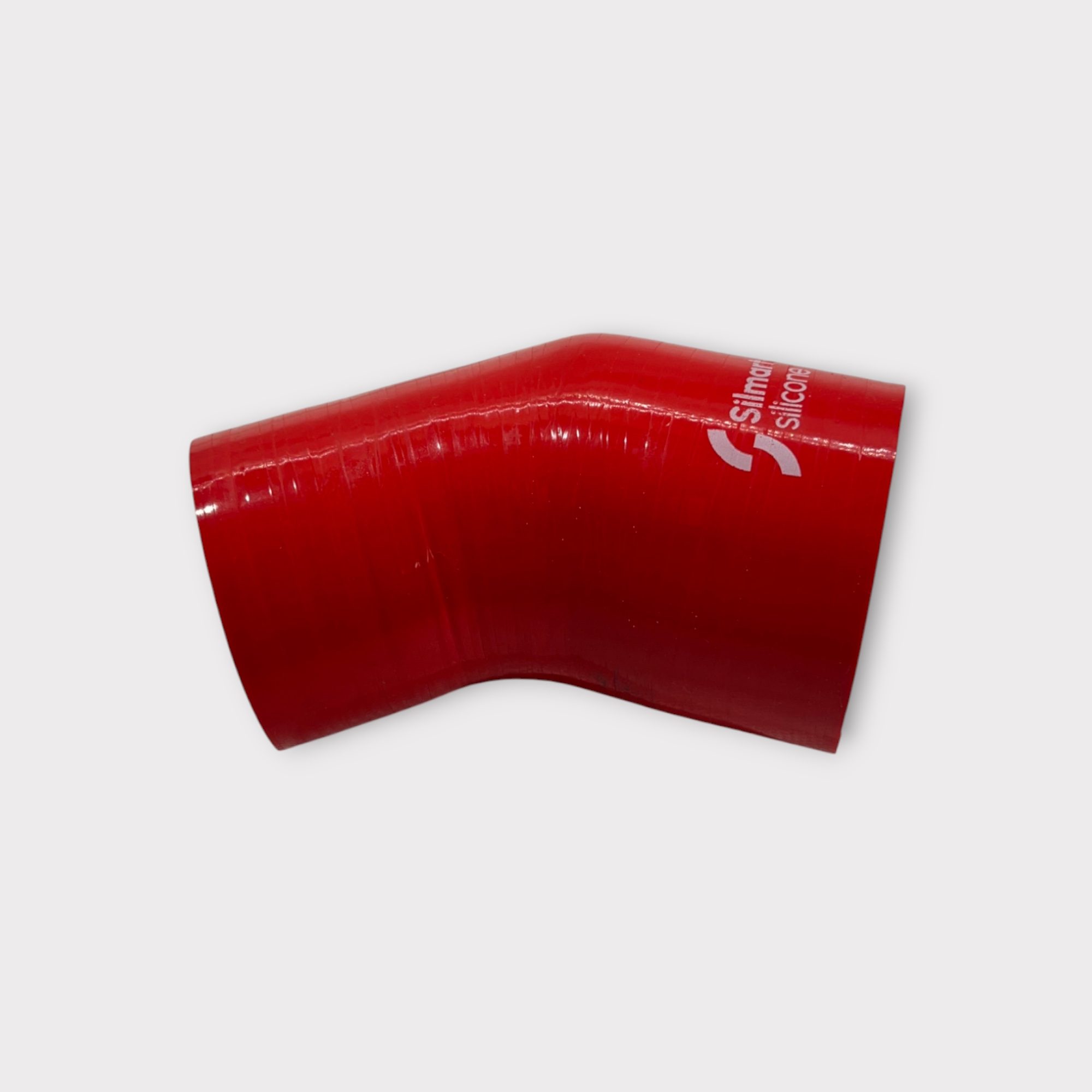

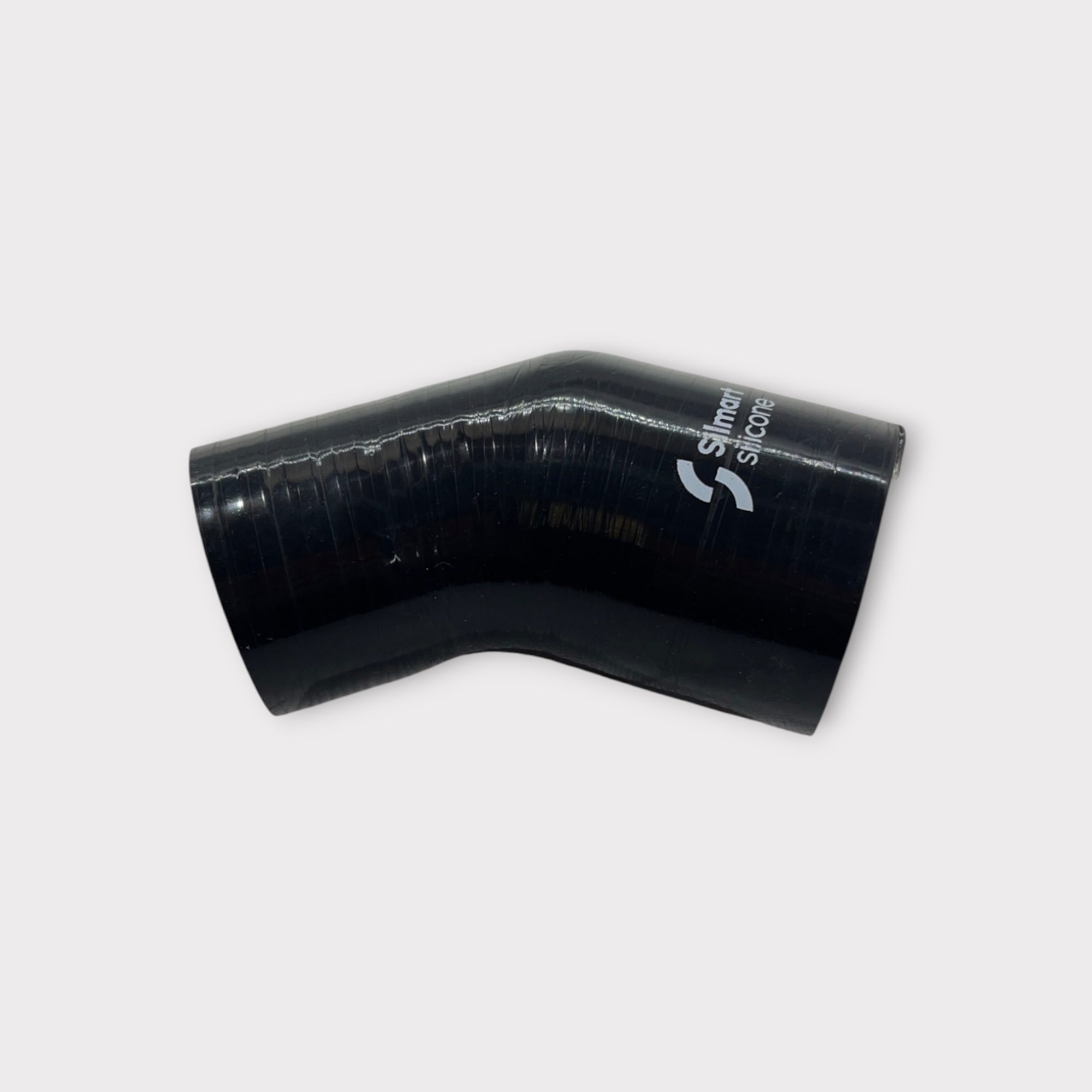

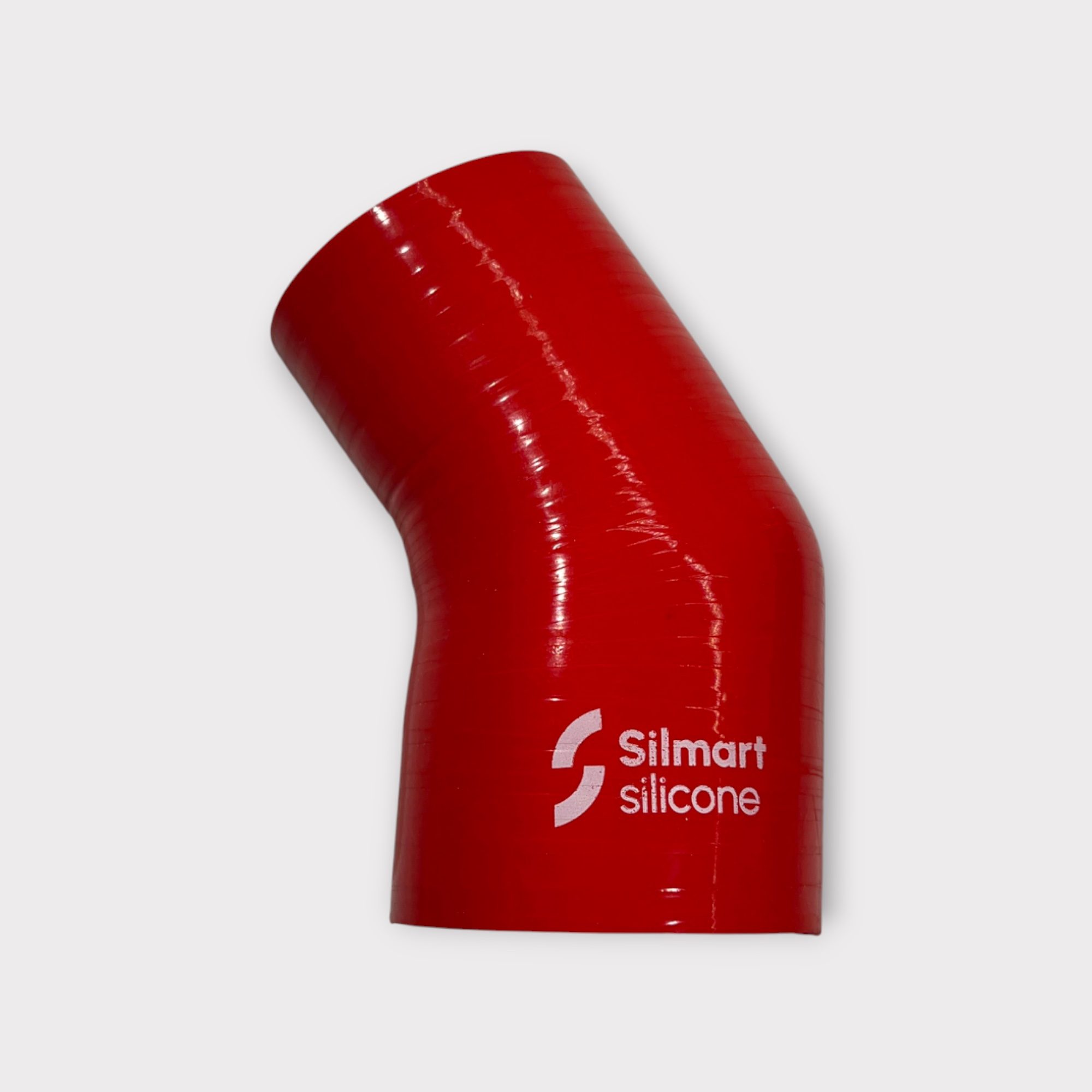

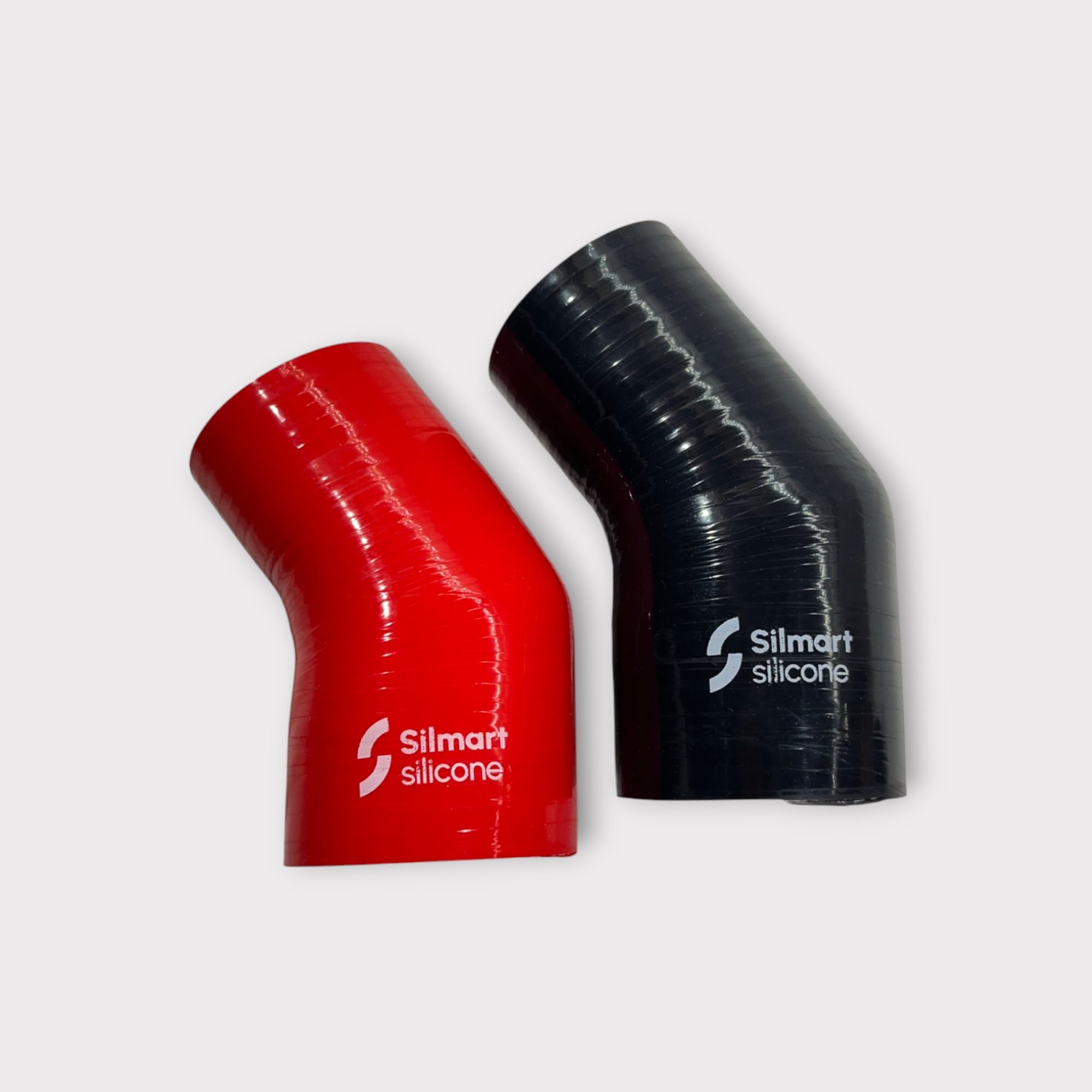

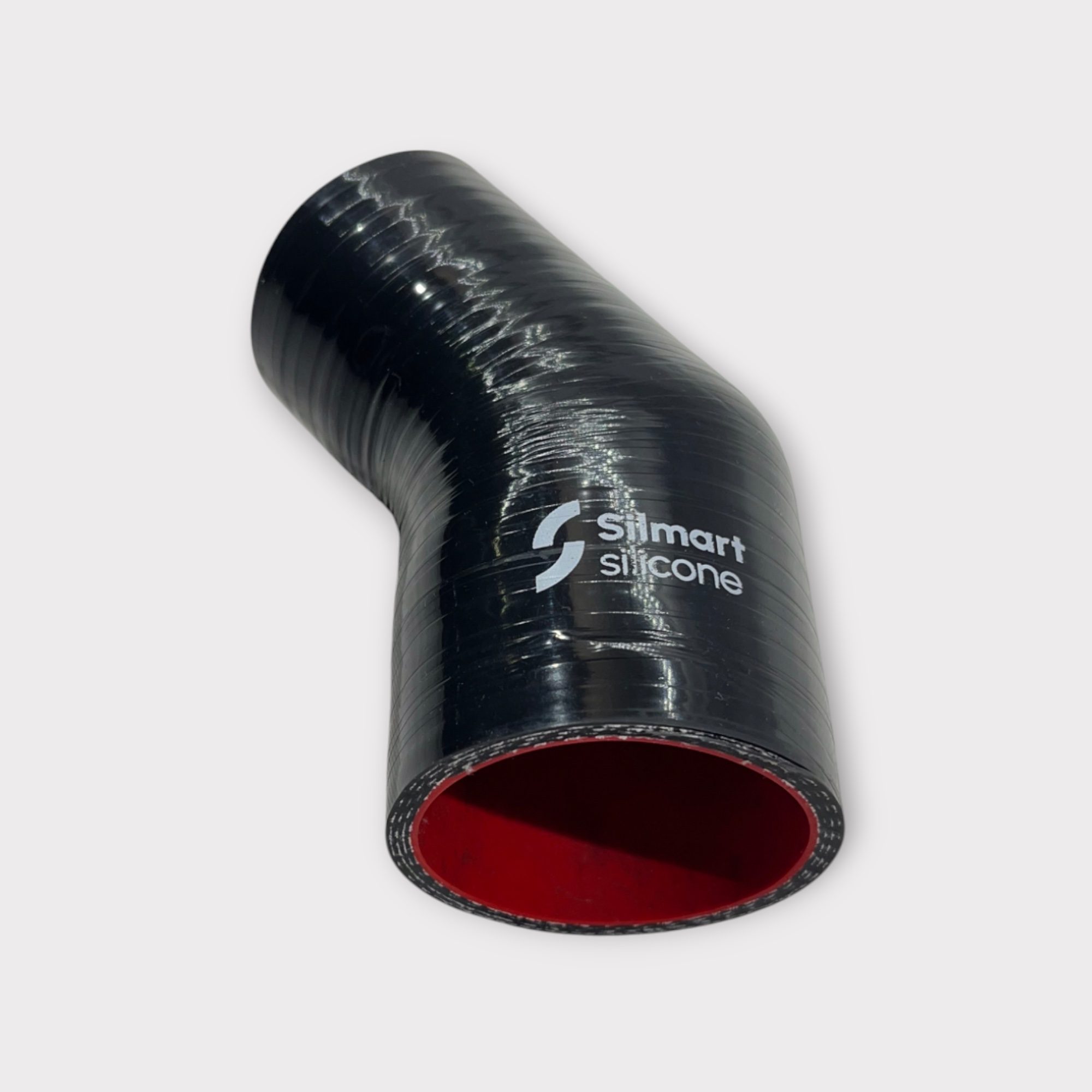

    45° Reducer Elbows

    Our Universal Silicone Hoses are designed to cover a wide range of general-purpose applications across industries – automotive, agricultural, industrial applications, etc.

    • Ideal for cooling systems, air intake, fluid transfer, and custom builds

    • Reinforced with 4 layers of premium polyester

    • High performance – continuous operation under high temperature and pressure

    • UV- and ozone-resistant outer layer for long service life in harsh environments

    • Available colors: red, blue, black, grey, orange

    • 5-Year Warranty

    • See “Available Sizes” tab below for a full list of diameters and lengths in stock

    • When ordering, please reference the Hose ID from the table below to ensure correct product selection

    24/7 Support

    Unlimited help desk

    Inside Diameter - ID Length (inch) Part Number / Hose ID
    1" > 5/8" (25mm > 16mm)
    • 4" x 4"
    • SMR 045.025.016.102
    1" > 3/4" (25mm > 19mm)
    • 4" x 4"
    • SMR 045.025.016.102
    1-1/8" > 7/8" (28mm > 22mm)
    • 4" x 4"
    • SMR 045.028.022.102
    1-1/4" > 7/8"  (32mm > 22mm)
    • 4" x 4"
    • SMR 045.032.022.102
    1-1/4" > 1"  (32mm > 25mm)
    • 4" x 4"
    • SMR 045.032.025.102
    1-1/4" > 1-1/8" (32mm > 28mm)
    • 4" x 4"
    • SMR 045.032.028.102
    1-3/8" > 3/4" (35mm > 19mm)
    • 4" x 4"
    • SMR 045.035.019.102
    1-3/8" > 1" (35mm > 25mm)
    • 4" x 4"
    • SMR 045.035.025.102
    1-3/8" > 1-1/8" (35mm > 28mm)
    • 4" x 4"
    • SMR 045.035.028.102
    1-1/2" > 1" (38mm > 25mm)
    • 4" x 4"
    • SMR 045.038.025.102
    1-1/2" > 1-1/4" (38mm > 32mm)
    • 4" x 4"
    • SMR 045.038.032.102
    1-5/8" > 1-1/4" (41mm > 32mm)
    • 4" x 4"
    • SMR 045.041.032.102
    1-5/8" > 1-3/8" (41mm > 35mm)
    • 4" x 4"
    • SMR 045.041.035.102
    1-3/4" > 1-1/4" (45mm > 32mm)
    • 4" x 4"
    • SMR 045.045.032.102
    1-3/4" > 1-3/8" (45mm > 35mm)
    • 4" x 4"
    • SMR 045.045.035.102
    1-3/4" > 1-1/2" (45mm > 38mm)
    • 4" x 4"
    • SMR 045.045.038.102
    1-7/8" > 1-5/8" (48mm > 41mm)
    • 4" x 4"
    • SMR 045.048.041.102
    2" > 1-1/4" (51mm > 32mm)
    • 4" x 4"
    • SMR 045.051.032.102
    2" > 1-3/8" (51mm > 35mm)
    • 4" x 4"
    • SMR 045.051.035.102
    2" > 1-1/2" (51mm > 38mm)
    • 4" x 4"
    • SMR 045.051.038.102
    2" > 1-3/4" (51mm > 45mm)
    • 4" x 4
    • SMR 045.051.045.102
    2-1/8" > 1-3/4" (55mm > 45mm)
    • 4" x 4"
    • SMR 045.055.045.102
    2-1/8" > 1-1/2" (55mm > 38mm)
    • 4" x 4"
    • SMR 045.055.038.102
    2-3/8" > 2" (60mm > 51mm)
    • 4" x 4"
    • SMR 045.060.051.102
    2-3/8" > 2-1/8" (60mm > 55mm)
    • 4" x 4"
    • SMR 045.060.055.102
    2-1/2" > 2" (63mm > 51mm)
    • 4" x 4"
    • SMR 045.063.051.102
    2-1/2" > 2-1/8" (63mm > 55mm)
    • 4" x 4"
    • SMR 045.063.055.102
    2-1/2" > 1-3/4" (63mm > 45mm)
    • 4" x 4"
    • SMR 045.063.045.102
    2-3/4" > 2" (70mm > 51mm)
    • 4" x 4"
    • SMR 045.070.051.102
    2-3/4" > 2-1/8" (70mm > 55mm)
    • 4" x 4"
    • SMR 045.070.055.102
    2-3/4" > 2-3/8" (70mm > 60mm)
    • 4" x 4"
    • SMR 045.070.060.102
    2-3/4" > 2-1/2" (70mm > 63mm)
    • 4" x 4"
    • SMR 045.070.063.102
    3" > 2" (76mm > 51mm)
    • 4" x 4"
    • SMR 045.076.051.102
    3" > 2-1/8" (76mm > 55mm)
    • 4" x 4
    • SMR 045.076.055.102
    3" > 2-3/8" (76mm > 60mm)
    • 4" x 4"
    • SMR 045.076.060.102
    3" > 2-1/2" (76mm > 63mm)
    • 4" x 4"
    • SMR 045.076.063.102
    3" > 2-3/4" (76mm > 70mm)
    • 4" x 4"
    • SMR 045.076.070.102
    3-1/8" > 2-3/8"  (80mm > 60mm)
    • 4" x 4"
    • SMR 045.080.060.102
    3-1/8" > 2-1/2"  (80mm > 63mm)
    • 4" x 4"
    • SMR 045.080.063.102
    3-1/8" > 2-3/4"  (80mm > 70mm)
    • 4" x 4"
    • SMR 045.080.070.102
    3-1/8" > 3"  (80mm > 76mm)
    • 4" x 4"
    • SMR 045.080.076.102
    3-1/2" > 2-1/2" (89mm > 63mm)
    • 4" x 4
    • SMR 045.089.063.102
    3-1/2" > 2-3/4" (89mm > 70mm)
    • 4" x 4"
    • SMR 045.089.070.102
    3-1/2" > 3" (89mm > 76mm)
    • 4" x 4"
    • SMR 045.089.076.102
    4" > 2-1/2" (102mm > 63mm)
    • 4" x 4"
    • SMR 045.102.063.102
    4" > 2-3/4" (102mm > 70mm)
    • 4" x 4"
    • SMR 045.102.070.102
    4" > 3-1/8" (102mm > 80mm)
    • 4" x 4"
    • SMR 045.102.080.102
    4" > 3-1/2" (102mm > 89mm)
    • 4" x 4"
    • SMR 045.102.089.102



    - Material: High-grade silicone
    - Reinforcement: 3 to 5-ply polyester or aramid depending on diameter and type
    - Temperature Range: -60°F to +430°F (constant), up to 480°C (intermittent)
    - Wall Thickness: Typically 4.5mm ±0.5mm (varies by size)
    - Working Pressure: Up to 4 bar (58 psi) depending on diameter
    - Burst Pressure: Minimum 3x working pressure
    - UV, ozone, and oil mist resistant
    - Not recommended for fuel or oil direct contact
