R500494 John Deere Silicone Hose Replacement
Back to products

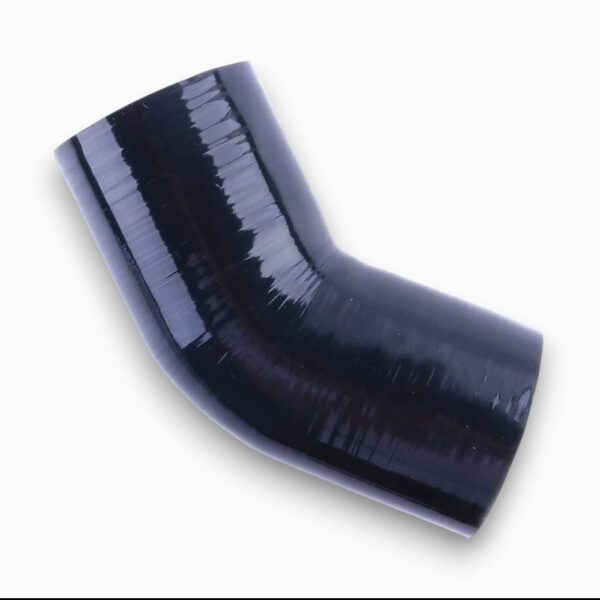

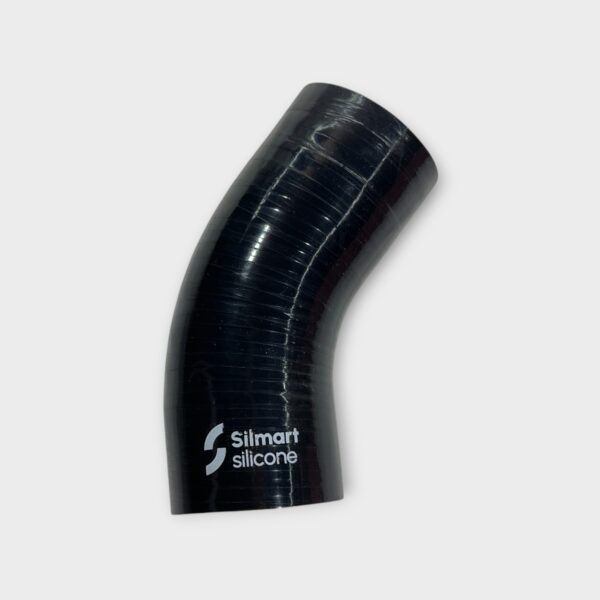

45° Elbow Hoses
45° Elbow Hoses
Straight Hoses - Image 1
Click to enlarge

    Straight Hoses

    Our Universal Silicone Hoses are designed to cover a wide range of general-purpose applications across industries – automotive, agricultural, industrial applications, etc.

    • Ideal for cooling systems, air intake, fluid transfer, and custom builds

    • Reinforced with 4 layers of premium polyester

    • High performance – continuous operation under high temperature and pressure

    • UV- and ozone-resistant outer layer for long service life in harsh environments

    • Available colors: red, blue, black, grey, orange

    • 5-Year Warranty

    • See “Available Sizes” tab below for a full list of diameters and lengths in stock

    • When ordering, please reference the Hose ID from the table below to ensure correct product selection

    24/7 Support

    Unlimited help desk

    Inside Diameter - ID L (inch) Part Number / Hose ID
    5/8" (16mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 016.016.102
    • SMP 016.016.150
    • SMP 016.016.300
    • SMP 016.016.1000
    3/4" (19mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 019.019.102
    • SMP 019.019.150
    • SMP 019.019.300
    • SMP 019.019.1000
    7/8" (22mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 022.022.102
    • SMP 022.022.150
    • SMP 022.022.300
    • SMP 022.022.1000
    1" (25mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 025.025.102
    • SMP 025.025.150
    • SMP 025.025.300
    • SMP 025.025.1000
    1-1/8" (28mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 028.028.102
    • SMP 028.028.150
    • SMP 028.028.300
    • SMP 028.028.1000
    1-1/4" (32mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8
    • SMP 032.032.102
    • SMP 032.032.150
    • SMP 032.032.300
    • SMP 032.032.1000
    1-3/8" (35mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 035.035.102
    • SMP 035.035.150
    • SMP 035.035.300
    • SMP 035.035.1000
    1-1/2" (38mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 038.038.102
    • SMP 038.038.150
    • SMP 038.038.300
    • SMP 038.038.1000
    1-5/8" (41mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 041.041.102
    • SMP 041.041.150
    • SMP 041.041.300
    • SMP 041.041.1000
    1-3/4" (45mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 045.045.102
    • SMP 045.045.150
    • SMP 045.045.300
    • SMP 045.045.1000
    1-7/8" (48mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 048.048.102
    • SMP 048.048.150
    • SMP 048.048.300
    • SMP 048.048.1000
    2" (51mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 051.051.102
    • SMP 051.051.150
    • SMP 051.051.300
    • SMP 051.051.1000
    2-1/8" (55mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 055.055.102
    • SMP 055.055.150
    • SMP 055.055.300
    • SMP 055.055.1000
    2-3/8" (60mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 060.060.102
    • SMP 060.060.150
    • SMP 060.060.300
    • SMP 060.060.1000
    2-1/2" (63mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 063.063.102
    • SMP 063.063.150
    • SMP 063.063.300
    • SMP 063.063.1000
    2-3/4" (70mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 070.070.102
    • SMP 070.070.150
    • SMP 070.070.300
    • SMP 070.070.1000
    3" (76mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 076.076.102
    • SMP 076.076.150
    • SMP 076.076.300
    • SMP 076.076.1000
    3-1/8" (80mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 080.080.102
    • SMP 080.080.150
    • SMP 080.080.300
    • SMP 080.080.1000
    3-1/2" (89mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 089.089.102
    • SMP 089.089.150
    • SMP 089.089.300
    • SMP 089.089.1000
    4" (102mm)
    • 4"
    • 6"
    • 12"
    • 39-3/8"
    • SMP 102.102.102
    • SMP 102.102.150
    • SMP 102.102.300
    • SMP 102.102.1000

    - Material: High-grade silicone
    - Reinforcement: 3 to 5-ply polyester or aramid depending on diameter and type
    - Temperature Range: -60°F to +430°F (constant), up to 480°C (intermittent)
    - Wall Thickness: Typically 4.5mm ±0.5mm (varies by size)
    - Working Pressure: Up to 4 bar (58 psi) depending on diameter
    - Burst Pressure: Minimum 3x working pressure
    - UV, ozone, and oil mist resistant
    - Not recommended for fuel or oil direct contact
