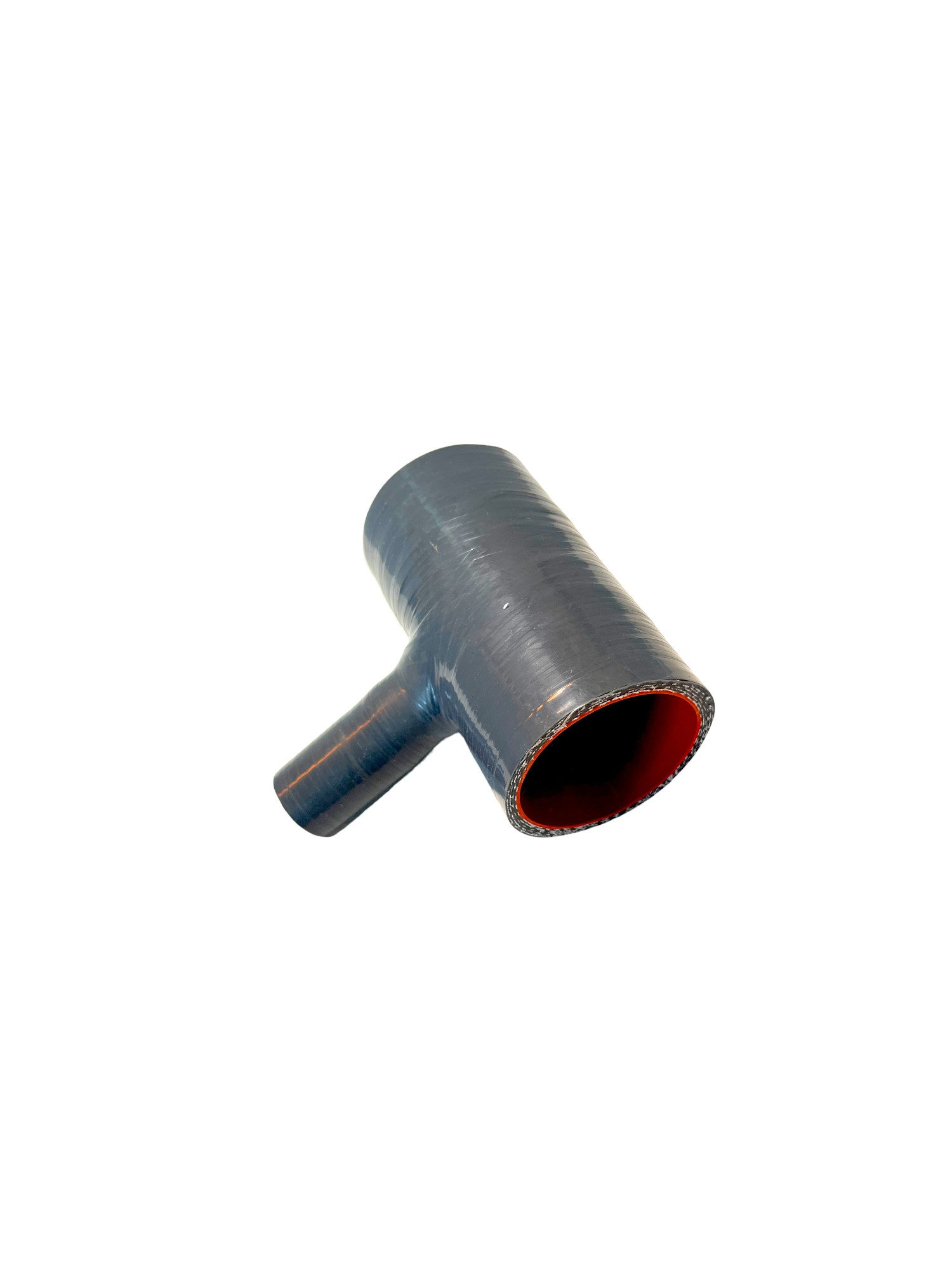

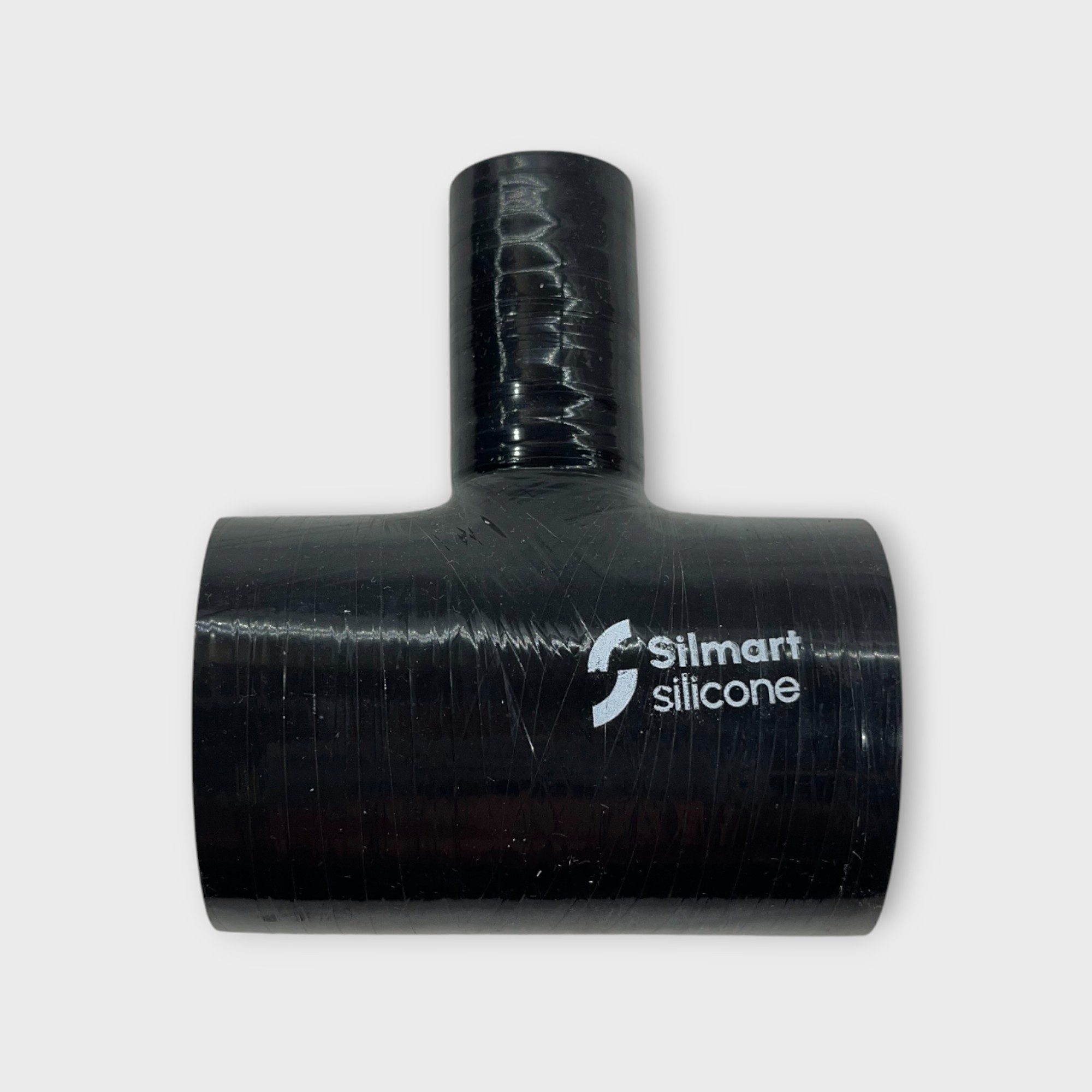

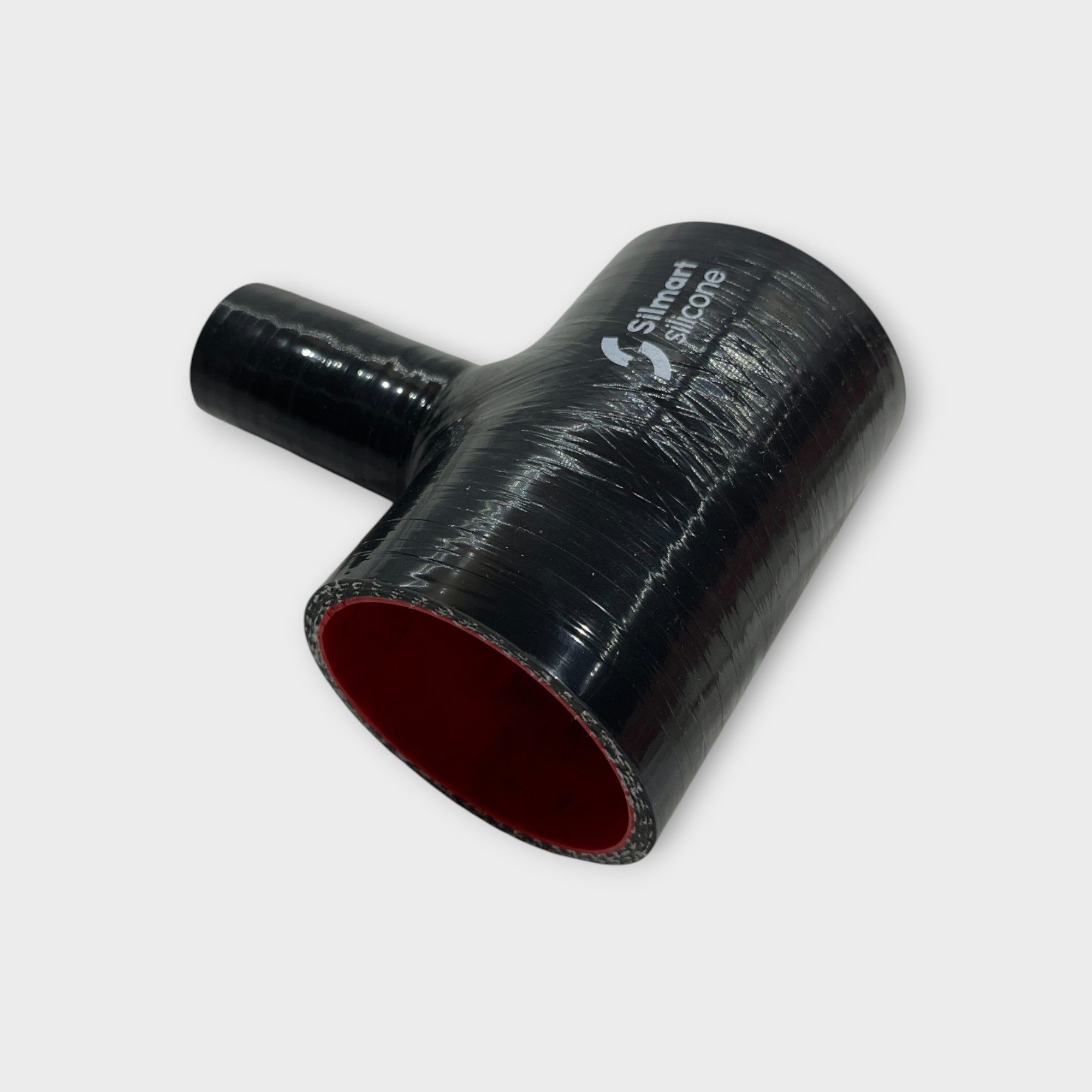

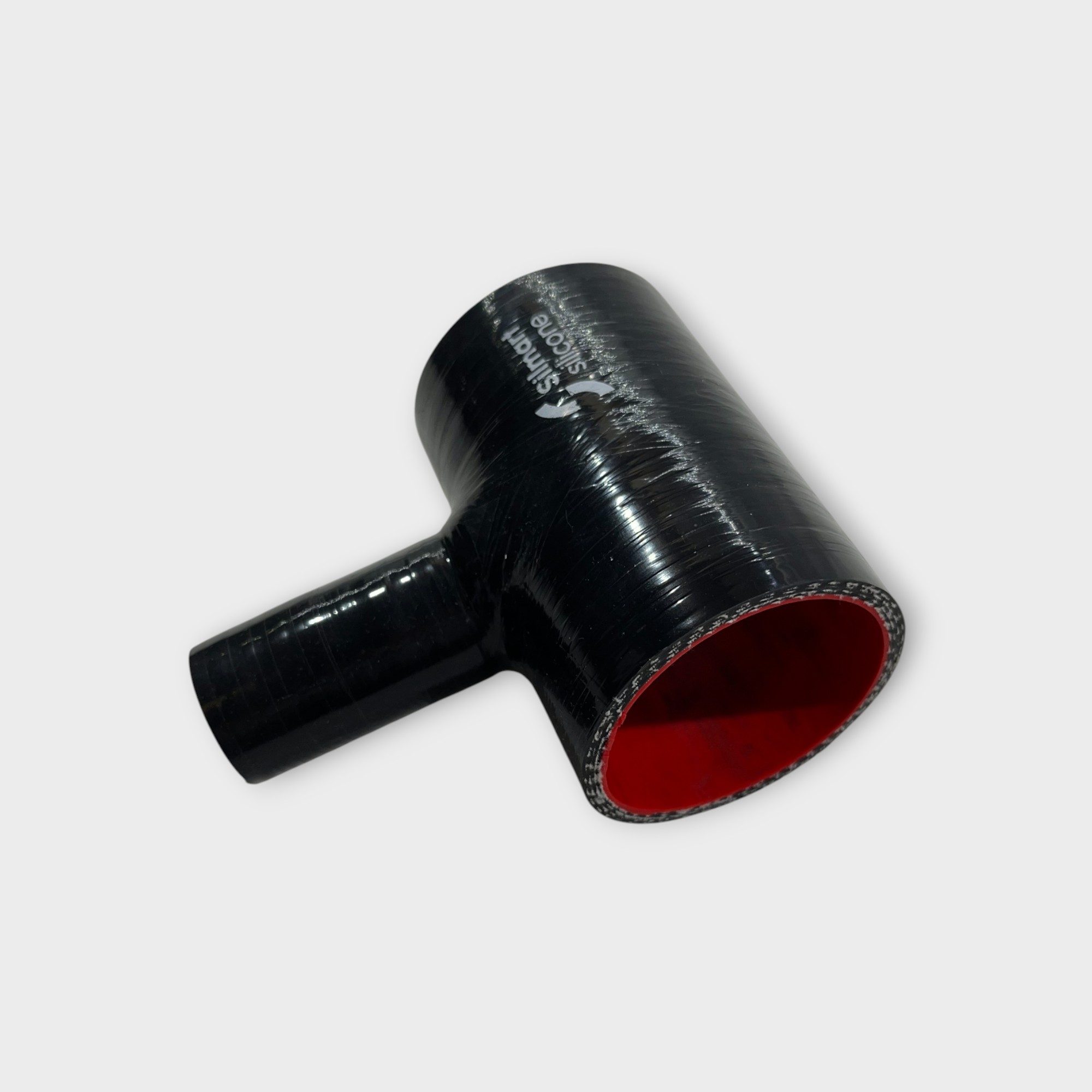

    T-piece Hoses

    Our Universal Silicone Hoses are designed to cover a wide range of general-purpose applications across industries – automotive, agricultural, industrial applications, etc.

    • Ideal for cooling systems, air intake, fluid transfer, and custom builds

    • Reinforced with 4 layers of premium polyester

    • High performance – continuous operation under high temperature and pressure

    • UV- and ozone-resistant outer layer for long service life in harsh environments

    • Available colors: red, blue, black, grey, orange

    • 5-Year Warranty

    • See “Available Sizes” tab below for a full list of diameters and lengths in stock

    • When ordering, please reference the Hose ID from the table below to ensure correct product selection

    24/7 Support

    Unlimited help desk

    Inside Diameter 1 x Inside Diameter 2 x Take Off Diameter Main Body Length x Take Off Length (inch) Part Number / Hose ID
    3/4" x 3/4" x 5/8" (19 x 19 x 16mm)
    • 6" x 1-1/4"
    • SMT 019.019.016
    7/8" x 7/8" x 7/8" (22 x 22 x 22mm)
    • 6" x 1-1/4"
    • SMT 022.022.022
    1" x 1" x 5/8"  (25 x 25 x 16mm)
    • 6" x 1-1/4"
    • SMT 025.025.016
    1" x 1" x 3/4"  (25 x 25 x 19mm)
    • 6" x 1-1/4"
    • SMT 025.025.019
    1" x 1" x 1"  (25 x 25 x 25mm)
    • 6" x 1-1/4"
    • SMT 025.025.025
    1-1/8" x 1-1/8" x 3/4" (28 x 28 x 19mm)
    • 6" x 1-1/4"
    • SMT 028.028.019
    1-1/4" x 1-1/4" x 3/4" (32 x 32 x 19mm)
    • 6" x 1-1/4"
    • SMT 032.032.019
    1-1/4" x 1-1/4" x 1-1/4" (32 x 32 x 32mm)
    • 6" x 1-1/4"
    • SMT 032.032.032
    1-3/8"x 1-3/8" x 3/4" (35 x 35 x 19mm)
    • 6" x 1-1/4"
    • SMT 035.035.019
    1-3/8"x 1-3/8" x 1-3/8" (35 x 35 x 35mm)
    • 6" x 1-1/4"
    • SMT 035.035.035
    1-1/2" x 1-1/2" x 3/4" (38 x 38 x 19mm)
    • 6" x 1-1/4"
    • SMT 038.038.019
    1-1/2" x 1-1/2" x 1" (38 x 38 x 25mm)
    • 6" x 1-1/4"
    • SMT 038.038.025
    1-1/2" x 1-1/2" x 1-1/2" (38 x 38 x 38mm)
    • 6" x 1-1/4"
    • SMT 038.038.038
    2" x 2" x 3/4" (51 x 51 x 19mm)
    • 6" x 1-1/4"
    • SMT 051.051.019
    2" x 2" x 1" (51 x 51 x 25mm)
    • 6" x 1-1/4"
    • SMT 051.051.025
    2" x 2" x 2" (51 x 51 x 51mm)
    • 6" x 1-1/4"
    • SMT 051.051.051
    2-3/8" x 2-3/8" x 1" (60 x 60 x 25mm)
    • 6" x 1-1/4"
    • SMT 060.060.025
    2-1/2" x 2-1/2" x 1" (63 x 63 x 25mm)
    • 6" x 1-1/4"
    • SMT 063.063.025
    2-3/4" x 2-3/4" x 1" (70 x 70 x 25mm)
    • 6" x 1-1/4"
    • SMT 070.070.025
    3" x 3" x 1" (76 x 76 x 25mm)
    • 6" x 1-1/4"
    • SMT 076.076.025

    - Material: High-grade silicone
    - Reinforcement: 3 to 5-ply polyester or aramid depending on diameter and type
    - Temperature Range: -60°F to +430°F (constant), up to 480°C (intermittent)
    - Wall Thickness: Typically 4.5mm ±0.5mm (varies by size)
    - Working Pressure: Up to 4 bar (58 psi) depending on diameter
    - Burst Pressure: Minimum 3x working pressure
    - UV, ozone, and oil mist resistant
    - Not recommended for fuel or oil direct contact
